Description
If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Monitor Elo Touch Systems 2402L Full HD 23,8" at an unbeatable price.

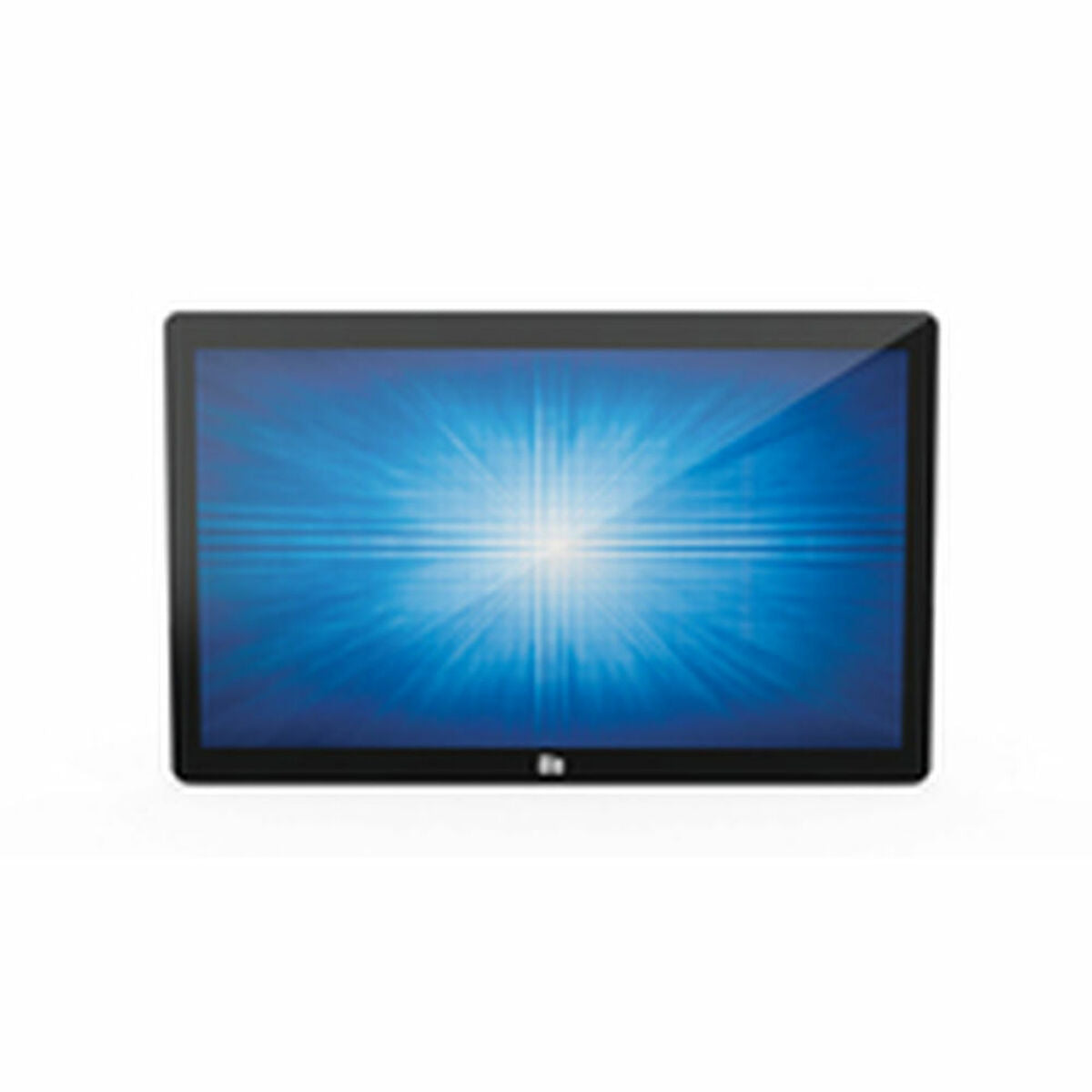

The Elo Touch Systems 2402L monitor is an advanced visual solution specially designed for professional environments requiring interactivity and precision. It features a 23.8-inch (60.5 cm diagonal) LCD touchscreen that delivers clear and sharp visuals thanks to its Full HD resolution of 1920 x 1080 pixels and a brightness of 250 cd/m², ensuring bright and well-defined images under varied lighting conditions. Its combined LED, TFT, and LCD screen technology offers an optimal balance between image quality, energy consumption, and durability, ideal for point-of-sale applications, interactive kiosks, or touchscreen workstations. The black color design provides a sober, professional look that easily integrates into any corporate or commercial setting. Additionally, it includes built-in speakers, facilitating audiovisual communication without extra accessories, and comes with an installation guide that simplifies setup and commissioning. This model stands out for its comfortable size and responsive touch experience, making it a versatile device for sectors valuing direct screen interaction without compromising visual quality or functionality. In summary, the Elo Touch Systems 2402L represents a reliable and efficient technical option for those seeking a touchscreen monitor with balanced features that support daily operations in professional environments.
- Screen:
- 23,8"
- 24"
- Product with plug: Yes
- Type of plug: Plug EU
- Resolution (px):
- 1920 x 1080 px
- 1080 px
- Resolution:
- Full HD
- LCD
- Diagonal of the screen (cm):
- 60,5 cm
- 61 cm
- Technology:
- LCD
- LED
- TFT
- Type: Monitor
- Colour: Black
- Response Time: 15 ms
- Shine: 250 cd/m2
- Voltage:
- 12 V
- 100-240 V
- 100 - 240 V
- Power:
- 5 W
- 4 W
- Energy classification: E
- Connections:
- HDMI
- VGA D-sub
- USB
- USB 2.0
- VGA
- Characteristics:
- Touchscreen
- Integrated speakers
- LCD Screen
- Installation guide included
- Frequency:
- 60 Hz
- 50-60 Hz
- 50 - 60 Hz
- Aspect ratio: 16:9
- Contrast Ratio: 1000:1
- Includes: Adapter AC
- Camera: No
- Not included: Adapter AC
- Type of Installation: Wall mounting
- Compatible: VESA 75 x 75, 100 x 100
- Luminous flux: 250 Lm
- Power RMS: 4 W
- Angle: 178º
- Energy consumption: 17 kWh
- Accuracy (relative humidity): 20 % - 80 %
- Design: Tablecloth
- Assembly: VESA
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.Brilliant Displays from 19 to 27-inchesThe clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.Well-Suited for...Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.Elo Edge Connect™ Lets You do More!Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!One for YouOne for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.Mount with FlexibilityCustomers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.Built-to-LastThe 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
- Display diagonal: 60.5 cm (23.8")
- Display brightness: 250 cd/m²
- HD type: Full HD
- Display technology: LCD
- Native aspect ratio: 16:9
- Display resolution: 1920 x 1080 pixels
- Panel type: TFT
- High frequency rate: 60 Hz
- Response time: 15 ms
- Contrast ratio (typical): 1000:1
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Display viewable area (HxV): 527.04 x 296.46 mm
- Digital horizontal frequency: 30 - 82 kHz
- Digital vertical frequency: 50 - 75 Hz
- LED backlight: Y
- Supported graphics resolutions: 640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 х 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
- Display number of colours: 16.78 million colours
- Product colour: Black
- International Protection (IP) code: IPX1
- Touch technology: Multi-touch
- Touchscreen technology: Projected capacitive system
- Built-in camera: N
- Touchscreen type: Tabletop
- Number of simultaneous touchpoints: 10
- Built-in speaker(s): Y
- RMS rated power: 4 W
- Number of speakers: 2
- Number of OSD languages: 10
- On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
- Mean time between failures (MTBF): 50000 h
- USB 2.0 ports quantity: 1
- Micro-USB ports quantity: 4
- HDMI: Y
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- Headphone outputs: 1
- Panel mounting interface: 75 x 75,100 x 100 mm
- VESA mounting: Y
- Power supply type: AC/DC
- Power consumption (typical): 25.5 W
- Power consumption (standby): 0.33 W
- Power consumption (off): 0.27 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 12 V
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 95%
- Operating altitude: 0 - 3.048 m
- Non-operating altitude: 0 - 12.192 m
- Certification: Canada (CUL,IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC,UL), Japan VCC, Internationa lCB, Australia RCM, Russia EAC, Mexico CoC
- Width (without stand): 57.5 cm
- Depth (without stand): 4.28 cm
- Height (without stand): 33.7 cm
- Weight (without stand): 5.42 kg
- Package width: 680 mm
- Package depth: 169 mm
- Package height: 460 mm
- Package weight: 7.54 kg
- Cables included: AC, Audio (3.5mm), HDMI, USB, VGA
- Quick start guide: Y
- AC adapter included: Y
- Stand included: N
- I/O ports: VGA, HDMI, Combo Jack, DC jack, USB Type B, USB 2.0 Type A, 4 x Micro USB
