Description
If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Motherboard MSI 7C96-001R mATX DDR4 AM4 AMD® A520 AMD AMD AM4 at an unbeatable price.

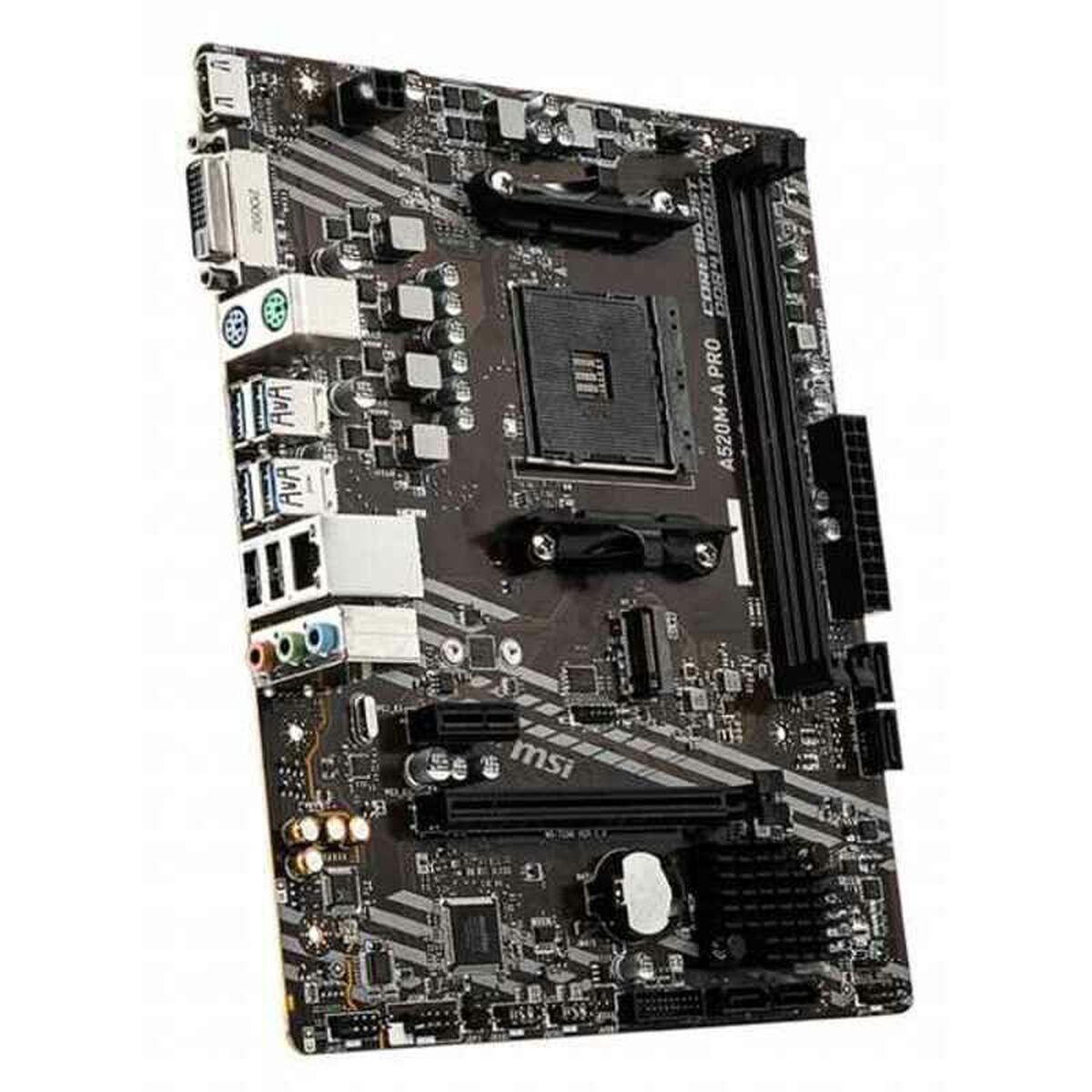

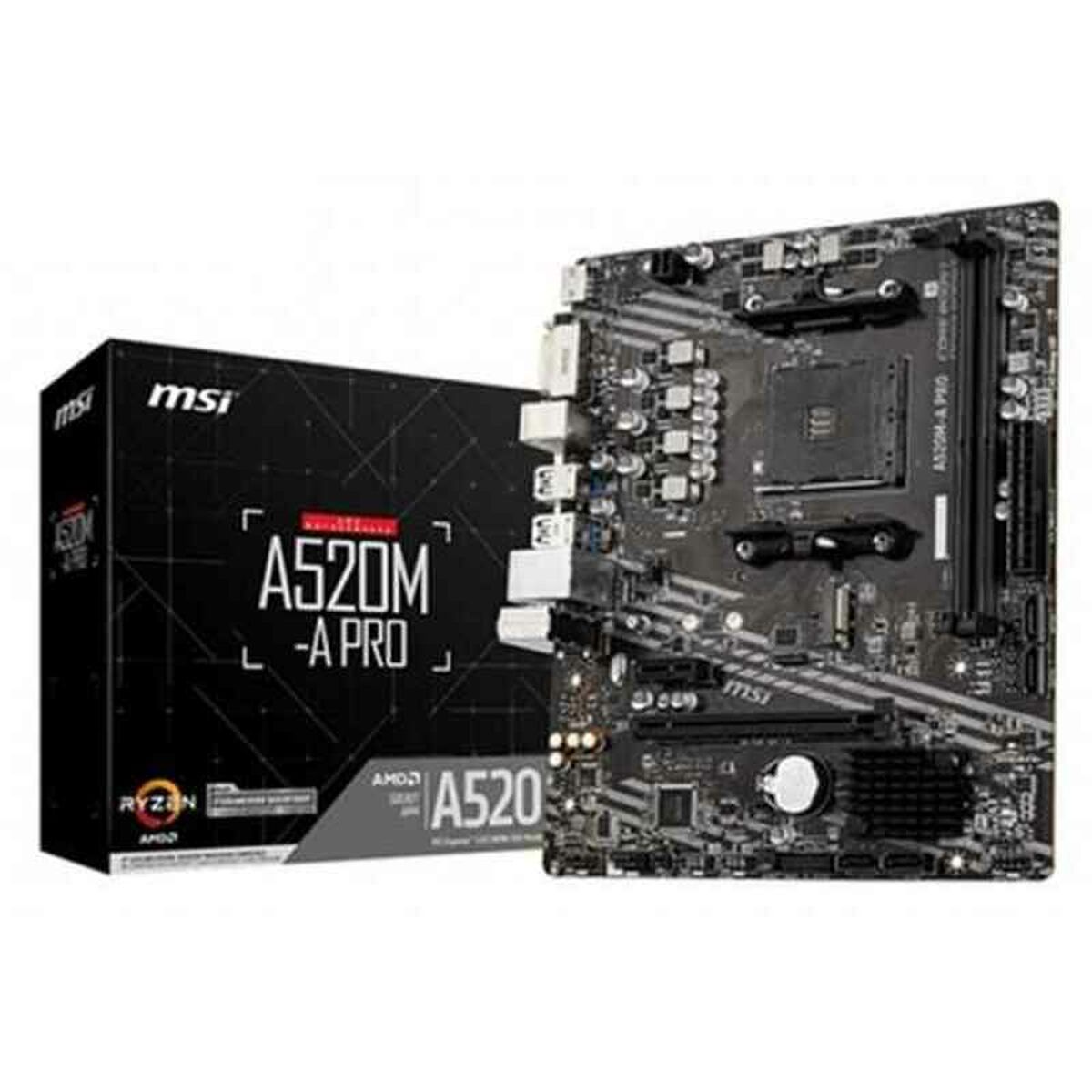

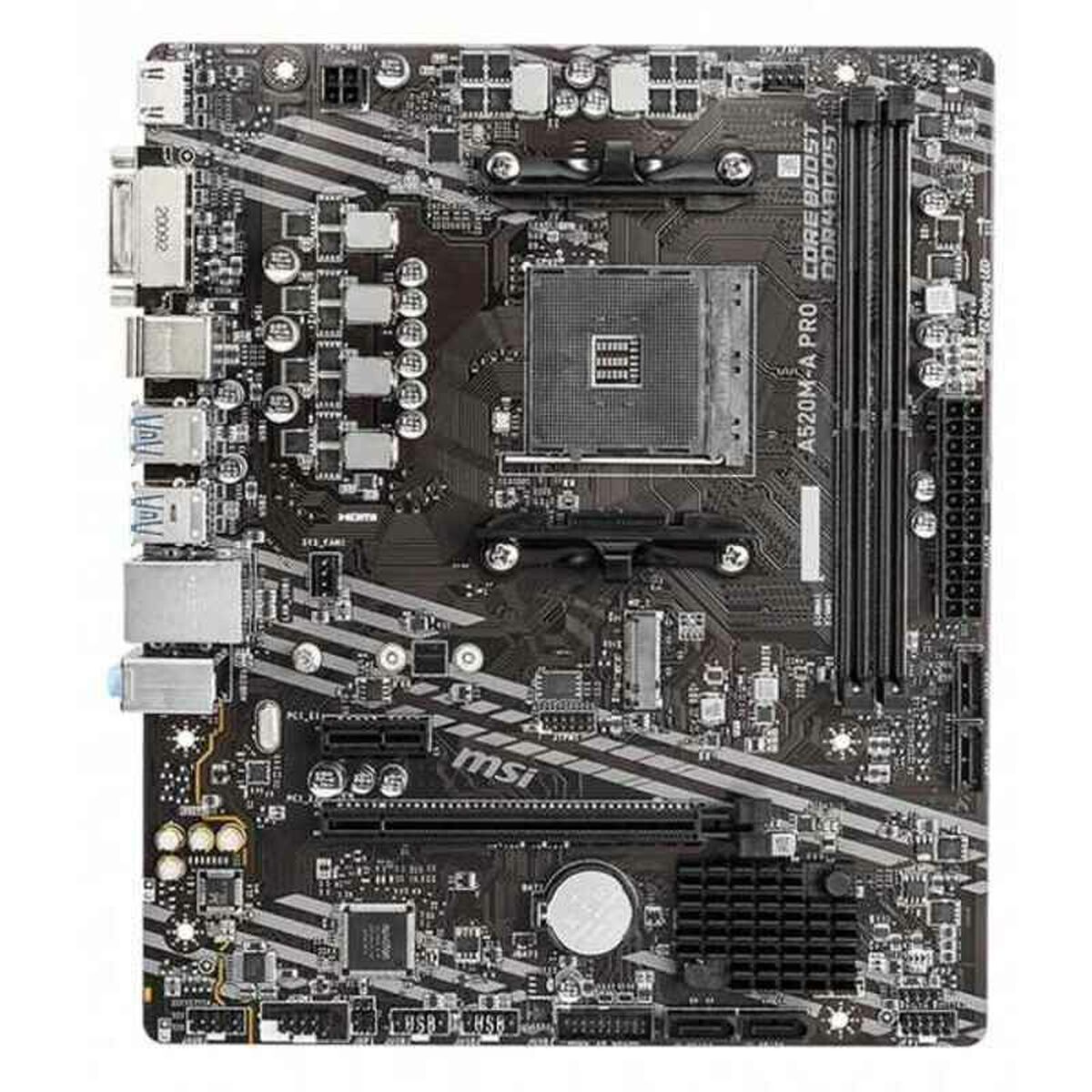

The MSI A520M-A PRO is a motherboard designed for users who need a solid and versatile platform for AMD processor-based systems, compatible with 1st, 2nd, and 3rd generation AMD Ryzen CPUs and processors with integrated Radeon Vega graphics. This AMD A520 chipset motherboard with AM4 socket features a MicroATX form factor, ideal for compact builds without sacrificing expansion options. It supports up to 64 GB of DDR4 SDRAM via two DIMM slots, with clock speeds from 1866 MHz up to 4600 MHz when overclocked, enabling smooth performance in demanding tasks and multitasking. For connectivity and storage, it offers multiple ports including 6 USB 3.2 ports, 4 SATA III connectors, and an M.2 slot for NVMe SSDs, ensuring fast transfers and flexibility for hard drives and solid-state drives. Video output includes HDMI and DVI interfaces, supporting a maximum resolution of 4096 x 2160 pixels, allowing connection to modern monitors with excellent image quality. It also includes a Realtek RTL8111H Gigabit Ethernet LAN controller for fast and stable network connections. This motherboard is compatible with various Ryzen 3, 5, and 7 processors from the third generation, balancing performance, efficiency, and upgrade potential. Its robust design and good expansion options make the MSI A520M-A PRO a practical choice for users or professionals assembling or upgrading a PC with AMD components, ensuring reliability and support for current memory and storage technologies. In summary, it provides a solid technical foundation for office, multimedia, and light gaming environments, standing out for compatibility, memory capacity, and connectivity.

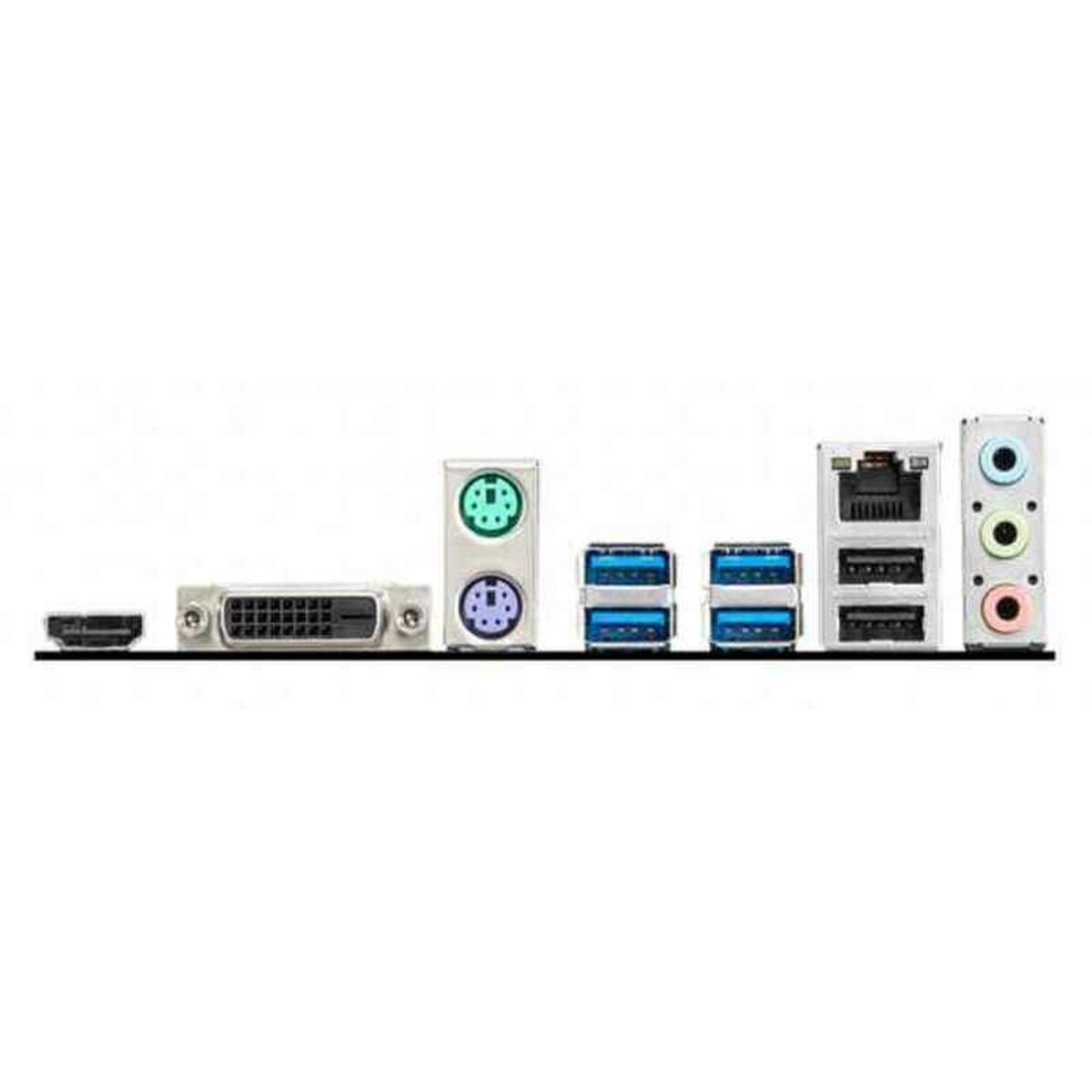

- Connections:
- HDMI
- PS/2
- SATA 6 Gb/s x 4
- USB 2.0 x 6
- DVI-D
- 4-pin ATX 12V x 1
- 24-pin ATX x 1
- USB 3.2 x 6
- Sata III
- USB 2.0
- USB 3.2
- HDMI x 1
- 2 x USB 2.0
- Microphone
- Ethernet LAN
- SATA x 4
- DIMM x 2
- DIMM
- 4 x USB 3.2 Gen 1 (3.1 Gen 1)
- PCI Express x16 2.0
- USB 2.0 x 2
- RJ45 x 1
- Sound: Realtek ALC892
- Compatible:
- AMD® Ryzen 1st, 2nd y 3rd Generation, Ryzen Radeon Vega Graphics Processors
- DDR4-SDRAM
- HDD/SSD
- PC
- Resolution (px): 4096 x 2160 px
- Chipset:
- AMD AM4
- AMD A520
- AMD
- Connectivity:
- Realtek RTL8111H 1Gb Ethernet
- Gigabit Ethernet
- Realtek 8111H
- Socket:
- Socket AM4
- AMD AM4
- Type:
- Motherboard
- ATX
- Memory Type: DDR4
- Processor: AMD
- Form factor:
- mATX
- MicroATX
- Year: 2020
- Internal Memory: 64 GB
- Interface: Gigabit Ethernet
- Speakers: 7.1
- Not included: WiFi
- Depth: 20 cm
- Processor Family: AMD
- Maximum RAM Memory: 64 GB
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FULLY FAN CONTROLFULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.EZ DEBUG LEDRun into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.DOUBLE ESD PROTECTIONULTIMATE MOTHERBOARD PROTECTIONDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.USB 3.2 GEN 1Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.PCB WITH 2OZ THICKENED COPPERAn enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.A HUGE STEP OF DDR PERFORMANCEMSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
- Maximum number of SMP processors: 1
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Maximum internal memory: 64 GB
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC: Y
- Non-ECC: Y
- Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
- Unbuffered memory: Y
- Supported storage drive interfaces: PCI Express 3.0,SATA
- Supported storage drive types: HDD & SSD
- Number of HDDs supported: 5
- RAID levels: 0,1,10
- Maximum resolution: 4096 x 2160 pixels
- Number of displays supported: 2
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Y
- Front panel connector: Y
- ATX Power connector (24-pin): Y
- CPU fan connector: Y
- Number of chassis fan connectors: 2
- Chassis intrusion connector: Y
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Microphone in: Y
- Wi-Fi: N
- Ethernet LAN: Y
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Motherboard chipset: AMD A520
- Audio output channels: 7.1 channels
- Audio chip: Realtek ALC892
- Number of mounting holes: 8
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Width: 236 mm
- Depth: 200 mm
