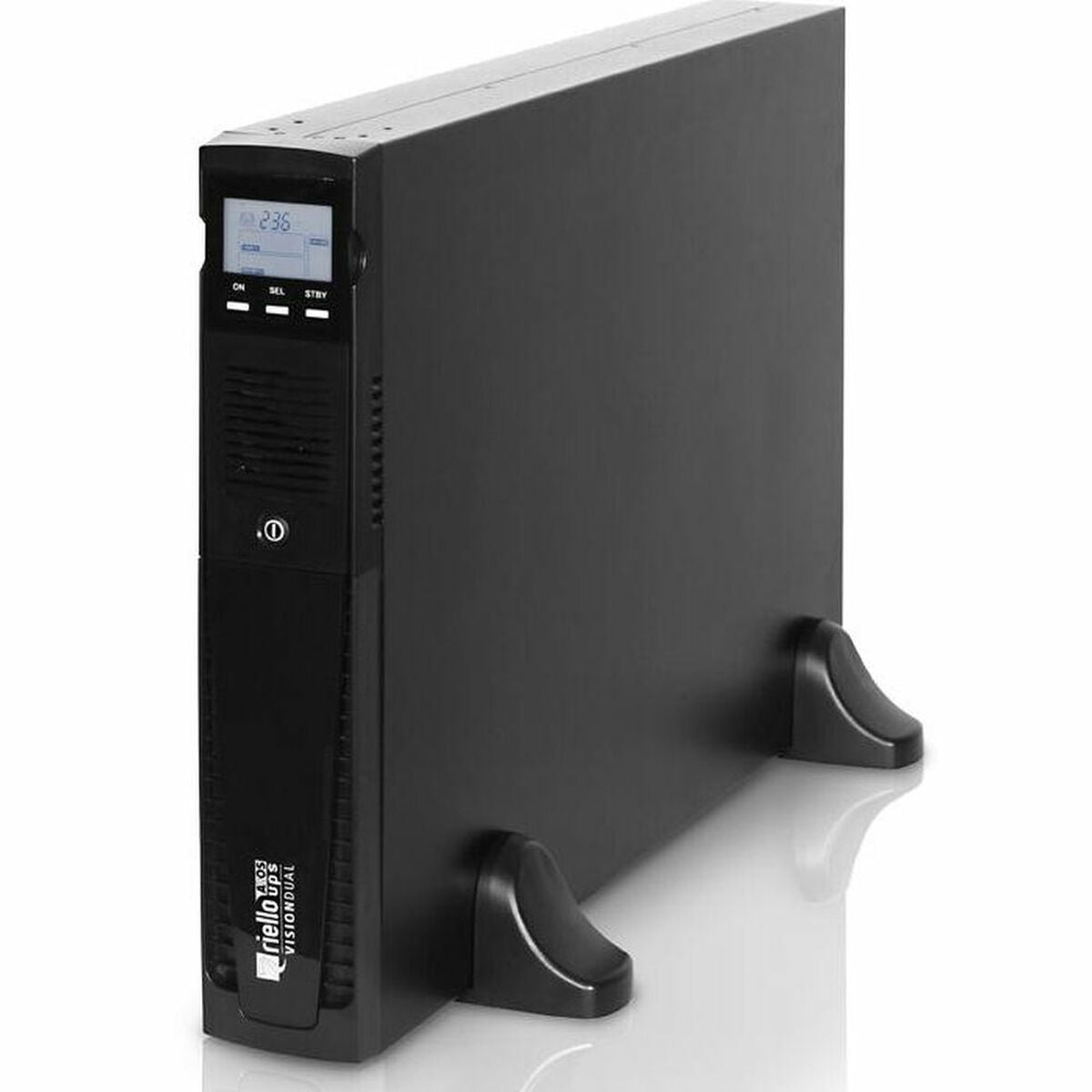

The Riello Vision Dual 3000 Interactive UPS is an advanced solution for protecting critical systems, combining versatility and high performance in a tower design that can also be adapted for 19-inch rack mounting. With a capacity of 3000 VA and 2700 W, this uninterruptible power supply is designed to support demanding loads in environments such as server rooms, hardware, and IT storage. It stands out for its 98% operational efficiency and a 0.9 output power factor, optimizing energy consumption and supply stability. Its AVR (automatic voltage regulator) stabilizes voltage against fluctuations, protecting connected devices and extending battery life, which has a 4-hour recharge time and can be hot-swapped via easy front-panel access. It features 9 AC outlets including C13 and C19 connectors, plus a USB 2.0 port and RS-232 connector for efficient monitoring and communication. The maximum noise level is 40 dB, suitable for professional settings, with compact dimensions of 87 mm height, 450 mm width, and 625 mm depth, and a weight of 31.5 kg. Its electromagnetic interference (EMI) filter protects against spikes and electrical transients, while the “cold start” function allows the UPS to start without external power. The EnergyShare output optimizes runtime during power failures, and expansion capability via external battery cabinets allows adaptation for extended autonomy. Its robust architecture includes protection against overcurrent, overvoltage, short circuit, and undervoltage, ensuring very high safety for connected loads. The removable and rotatable digital interface facilitates installation in various configurations, and the emergency power-off switch adds an extra control layer in critical situations. In summary, the Riello Vision Dual 3000 combines reliable technology, flexible mounting, and powerful protection features to ensure a stable and continuous power supply in professional environments.

• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Tower
  • Uninterruptible Power Supply System Interactive UPS
  • C19
• Approx. charging time: 4 hours
• Colour: Black
• Width: 61 cm
• Connections:
  • USB 2.0
  • AC x 9
  • C20 coupler
  • RJ45
• Power: 2700 W
• Rated power: 3 kVA
• Frequency: 50/60 Hz
• Noise level: 40 dB
• Voltage: 220 V
• AC input voltage: 240 V

The Vision Dual series (tower and rack) includes models from 1100 VA to 3000 VA.The Vision Dual series, for its connectivity and advanced communications, is the ideal solution for the most demanding customers who require a power supply system that offers superior protection and versatility for the protection of critical loads - floor standing or rackmount servers, network hardware and storage systems.Vision Dual has a modern design, choice of functional formats, and represents the state-of-the-art technology from the Riello UPS research & development team.The UPS can achieve an operating efficiency of 98% and has a output power factor of 0,9.VERY HIGH PROTECTIONWithin a VISION DUAL, an Automatic Voltage Regulator (AVR) provides voltage stabilisation and protection from brownouts, sag and surge voltages.The AVR also helps to reduce battery usage and retain their charge for a complete mains power supply failure.Electro Magnetic Interference (EMI) filters provide further protection from spikes and transients.When the mains power supply fails, the load is powered by the inverter and Single-phase receives a true SINEWAVE supply for maximum power continuity and reliability.HIGH AVAILABILITYAn EnergyShare output socket provides load shedding on mains power supply failure to maximise the back-up time available for critical loads.The battery can be “hot-swapped” and is easily accessible behind the front panel of the UPS.For extended back-up times, additional Battery Boxes and extended charging current versions (ER) are available for the VSD 2200 and VSD 3000. Predictive battery testing helps to identify potential battery deterioration and failures.Deep discharge protection helps to reduce overall battery aging.VERSATILITYVision Dual can be placed directly onto the floor or mounted in 19’’ rack mount cabinets.The front panel digital display can easily be pulled out and rotated to suit the installation format.Vision Dual include an Emergency Power Off switch for complete electrical shutdown in emergency situations.The “cold-start” function allows a Vision Dual to start up on inverter when no mains power or alternative power supply is present.

• Output power capacity: 3 kVA
• Output power: 2700 W
• Input operation voltage (min): 220 V
• Input operation voltage (max): 240 V
• Input frequency: 50/60 Hz
• Surge energy rating: 300 J
• Power factor: 0.98
• Crest factor: 2.5:1
• Noise level: 40 dB
• Power protection features: Over current, Over voltage, Short circuit, Under voltage
• AC outlet types: C13 coupler, C19 coupler
• Power plug: C20 coupler
• AC outlets quantity: 9 AC outlet(s)
• USB 2.0 ports quantity: 1
• RS-232 ports: 1
• Battery recharge time: 4 h
• Form factor: Rackmount/Tower
• Product colour: Black
• Operating temperature (T-T): 0 - 40 °C
• Operating relative humidity (H-H): 0 - 95%
• Width: 450 mm
• Depth: 625 mm
• Height: 87 mm
• Weight: 31.5 kg
• Package weight: 36.5 kg
• Package dimensions (WxDxH): 600 x 760 x 240 mm
